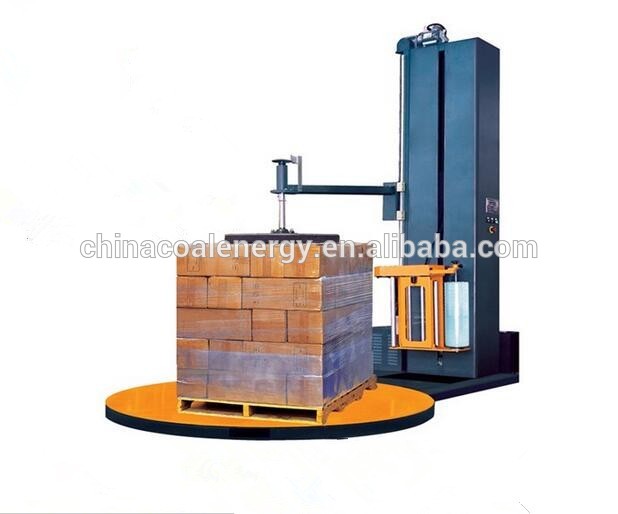

stretch wrapping machine pallet wrapping machine with top plate
Product Description
Pallet Wrapping Machine Introduction
stretch Wrapping Machine pallet wrapping machine with top plate introduction
Pallet Wrapping machine Parameter
stretch wrapping machine pallet wrapping machine with top plate Specifications:
stretch wrapping machine pallet wrapping machine with top plate | |
Model | T1650F-CS Automatic pre-stretch top platen film wrapping machine |
Wrapping product size | L(500-1200) mm × W(500-1200)mm |
Wrapping height | according to customer’s requirement |
Packing efficiency | 20-40 pallet/h |
Rotary speed | 0~12rpm turntable transducer adjustable, turntable automatic re-back |
Turntable size | Dia:1650mm Height:85mm |
Turntable weight capacity | 2000kgs |
Film carriage system | Pre-stretch film carriage, pre-stretch up to 250%, automatic transport film |
Up and down upright | Double chain structure, adjustable up and down speed by transducer |
Control system | PLC programmable |
Work voltage pneumatic system | 0.6~0.8Mpa 1000ml/min |
Machine weight | 700kg |
Machine size | 2745mm×1650mm × (2260-3260) mm |

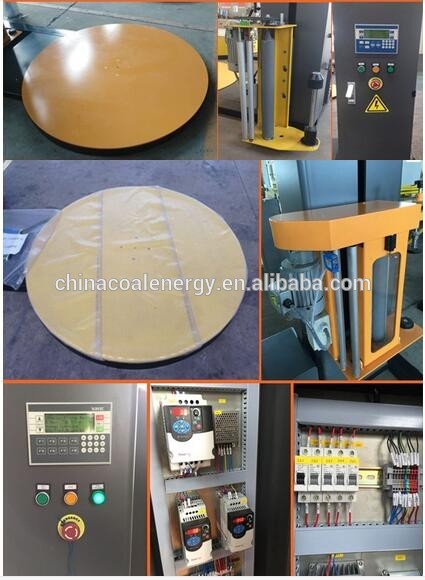

Pallet wrapping machine Photos
