T1650F-CS pallet wrapping machine stretch film packaging machine
Product Description
Pallet Wrapping Machine Introduction
T1650F-CS pallet wrapping machine stretch film Packaging Machine introduction
Pallet Wrapping Machine Parameter
T1650F-CS pallet Wrapping machine stretch film packaging machine Specifications:
T1650F-CS model pallet wrapping machine stretch film packaging machine | |
Model | T1650F-CS Automatic pre-stretch top platen film wrapping machine |
Wrapping product size | L(500-1200) mm × W(500-1200)mm |
Wrapping height | according to customer’s requirement |
Packing efficiency | 20-40 pallet/h |
Rotary speed | 0~12rpm turntable transducer adjustable, turntable automatic re-back |
Turntable size | Dia:1650mm Height:85mm |
Turntable weight capacity | 2000kgs |
Film carriage system | Pre-stretch film carriage, pre-stretch up to 250%, automatic transport film |
Up and down upright | Double chain structure, adjustable up and down speed by transducer |
Control system | PLC programmable |
Work voltage pneumatic system | 0.6~0.8Mpa 1000ml/min |
Machine weight | 700kg |
Machine size | 2745mm×1650mm × (2260-3260) mm |

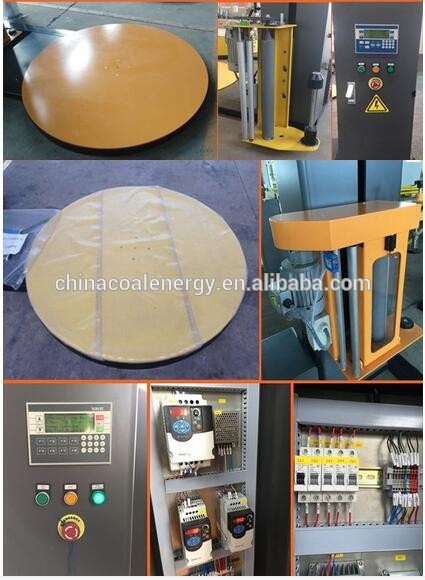

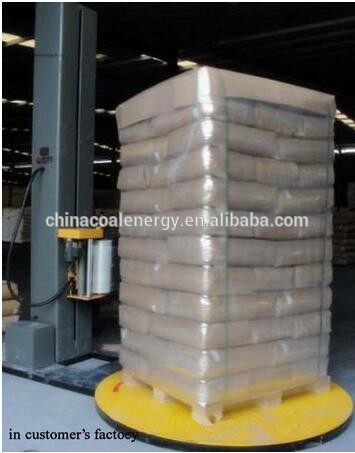

Pallet wrapping machine Photos
