Jelly Sachet Juice Filling Packing Machine

Product Description

Product Description



Product Introduction

Jelly Sachet Juice Filling Packing Machine

Feature:

Configure different filling body, which can realize the powder, granule, liquid, paste, and other products packaging.

A variety of fashion bag type can be arbitrary replacement

The structure is simple and easy, simple operation, easy maintenance.

Main Parameter

Jelly Sachet Juice Filling Packing Machine

QD-330G

QD-330G

QD-330GZ

Packing data













Soft bag type

Self-reliance bags, flat bags

Self-reliance bags, flat bags, zipper

Packing Material

composite membrane

Soft bag minimal size

150mm*150mm

150mm*150mm

Soft bag maximum size

330mm*450mm

330mm*450mm

The biggest packaging capacity

3000ml

3000ml

packaging speed

40-60ppm

40-60ppm

Filling station

2

2

machine function





Standard features

Date print, export conveyor belt

Optional features

Aseptic packaging, anti-static, automatic cleaning system, prevent drip control valves

Operating conditions









power

6.5KW

6.5KW

Gas consumption

400NL/Min

500NL/Min

The environment temperature

-10℃-+55℃

Relative humidity

Below 85% (Non-condensation)

Electrical parameters

AC380V50Hz

The equipment parameters



Size (L*W*H)

3750*1200*1400mm

3950*1200*1400mm

Weight

2300KG

2400KG

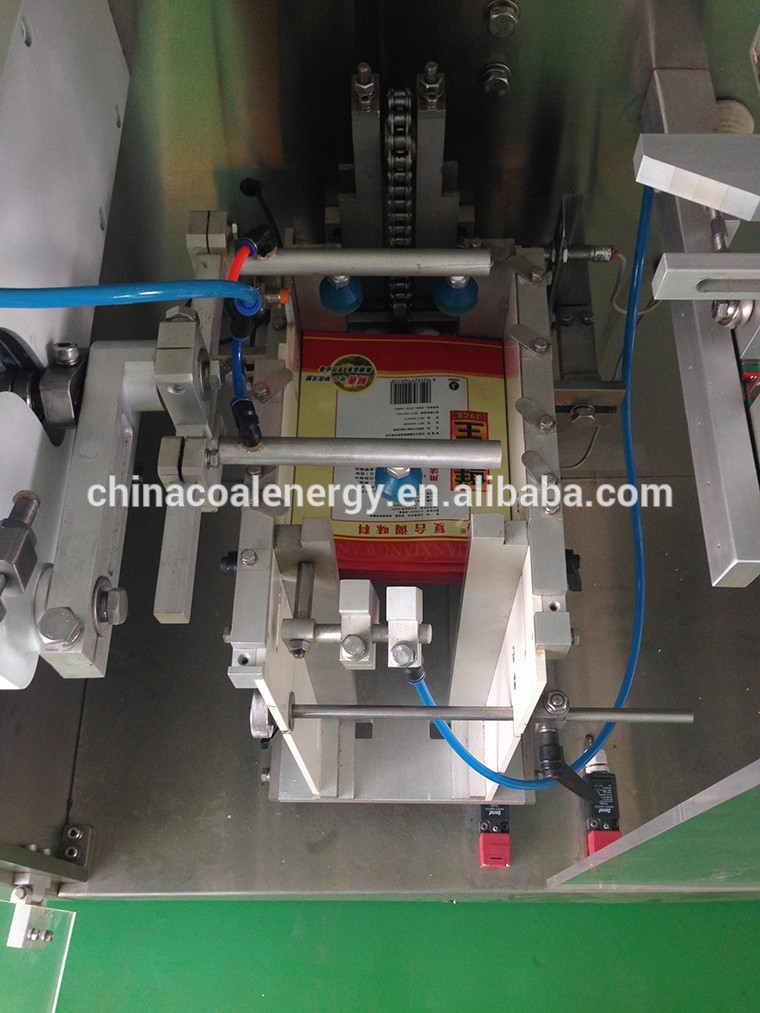

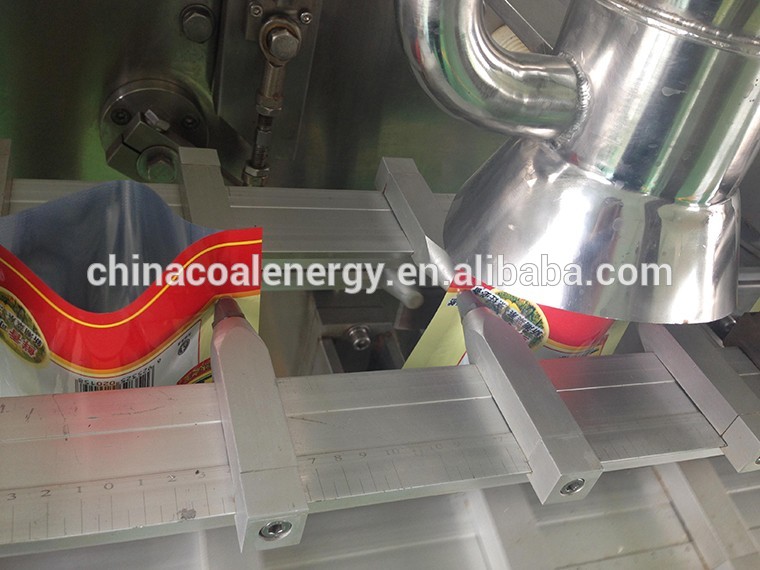

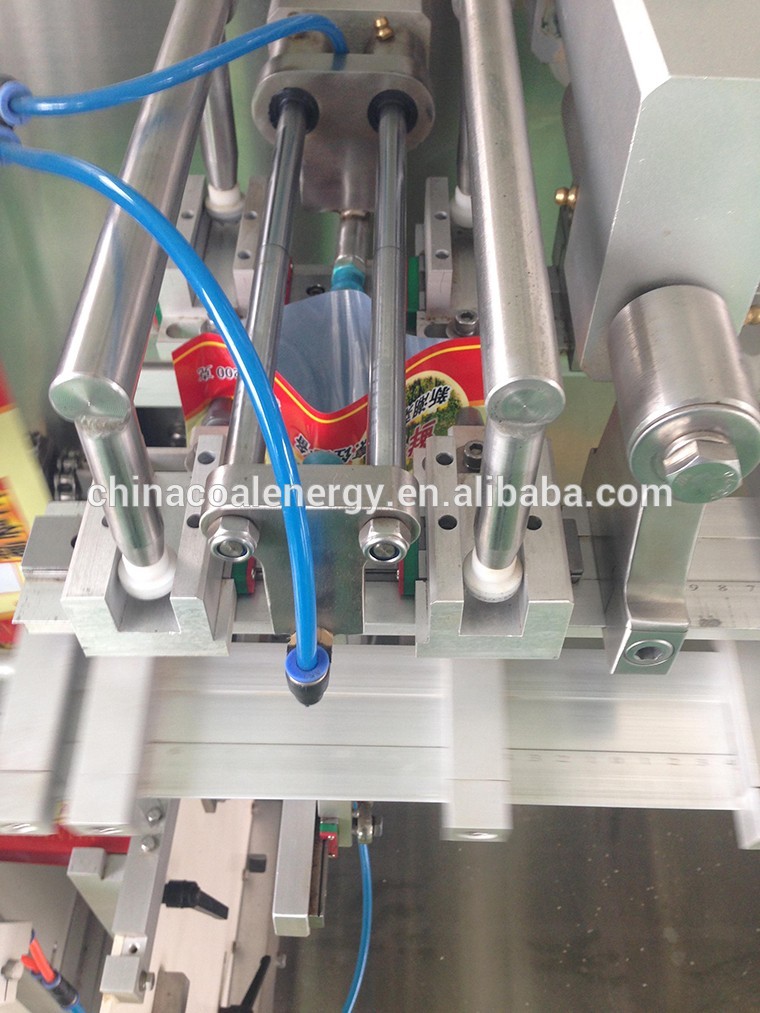

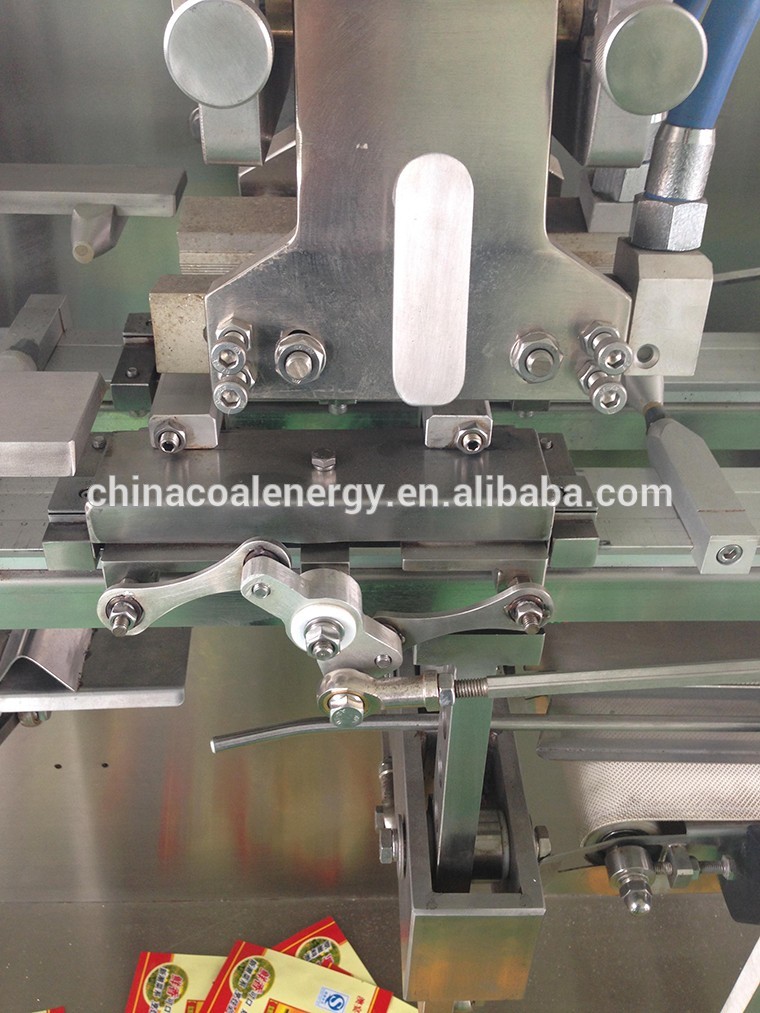

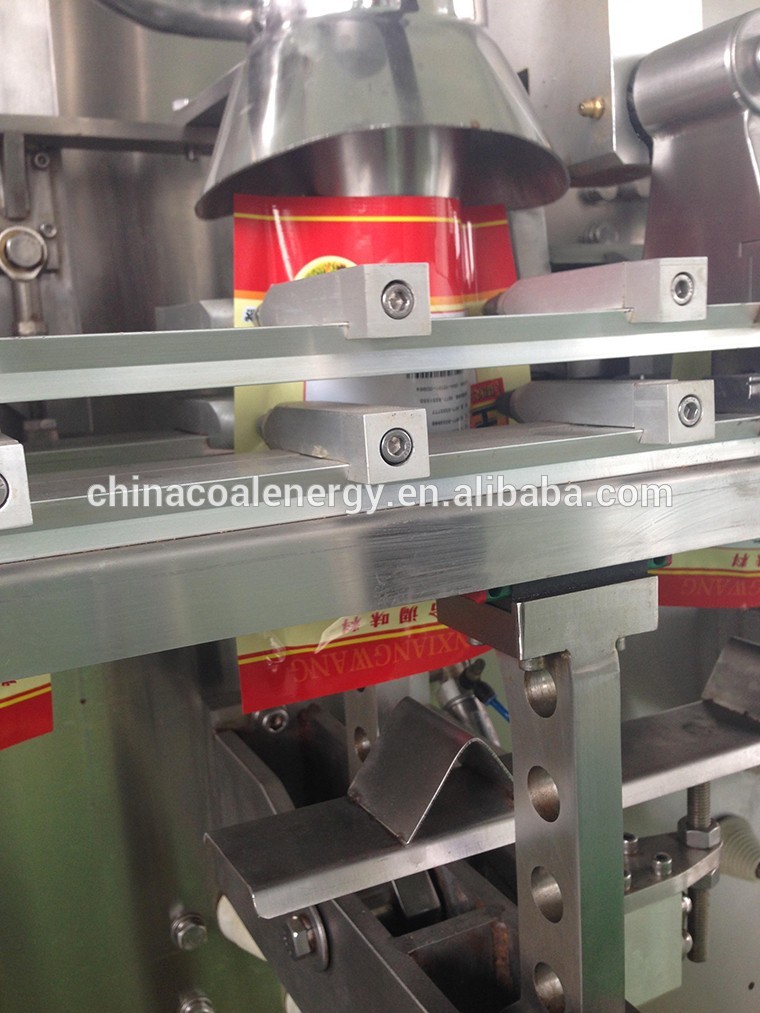

Figure Photos

Jelly Sachet Juice Filling Packing Machine
