BH26 Portable Handheld Hydraulic Jack Hammer Rock Drill Hydraulic Rock Drill

Product Description

Product Description



Product Introduction

Introduction of  BH26 Portable Handheld Hydraulic Jack Hammer Rock Drill Hydraulic Rock Drill

BH26 Portable Handheld Hydraulic Jack Hammer Rock Drill is working efficiency is 5-10 times that of pneumatic rock drill, while consuming 1/3 power of latter

Drilling performance: applicable to hard, semi-hard and soft rocks; According to different engineering requirements, we can offer various supporting devices for different working.

Main Parameter

Introduction of  BH26 Portable Handheld Hydraulic Jack Hammer Rock Drill Hydraulic Rock Drill



Technical Specifications of BH26

Overall dimension

600*173*190mm

Hole Diameter

32-50mm

Drilling depth

9m

Drilling speed

250-300rpm

Working oil pressure

15-17Mpa

Percussion oil flux

30-35I/min

Impact energy

55-60J

Impact frequency

55-60Hz

Torque force

50-55Nm

Power

11kw

Water or air pressure for dust flushing

0.3-0.5Mpa/0.5-0.7Mpa

Air consumption for dust flushing

16.5L/s

Drill steel shank

Hex22X108mm

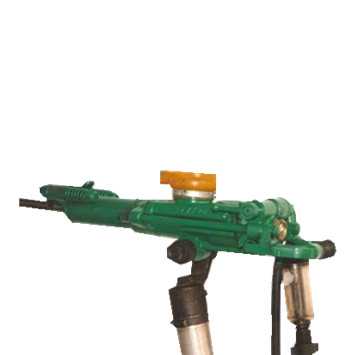

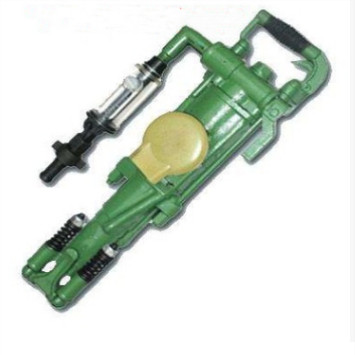

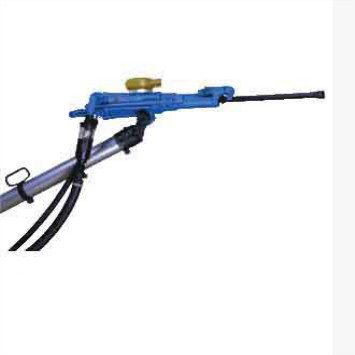

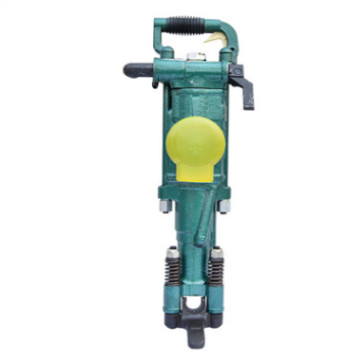

Figure Photos

Introduction of  BH26 Portable Handheld Hydraulic Jack Hammer Rock Drill Hydraulic Rock Drill

Company Information


Certifications


Canton Fair


Successful Cases


Packaging & Shipping


Payment Terms



Contact us if you need more details on Hydraulic Rock Drill. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Jack Hammer Rock Drill、Hydraulic Rock Drill Price. If these products fail to match your need, please contact us and we would like to provide relevant information.
